Oxygen Concentrator for Taurus Healthcare

A home-use medical device for patients who depend on oxygen. Six moulds. Multi-cavity. Sixty days. Hongyi JIG governed every decision between design and delivery.

1
The Brief
2
The Design
3
The Validation
4
The Tooling

A device that sits in a patient's home — and must work every time.

Taurus Healthcare Pvt Ltd, an ISO 13485 certified company, awarded Hongyi JIG the injection mould development project for their Oxygen Concentrator. The device delivers concentrated oxygen to patients with respiratory conditions — in their homes. The brief was clear: high functionality, clean design that fits a home environment, and production-ready tooling within 60 days.

Oxygen Concentrator — Final productOxygen Concentrator — Final product

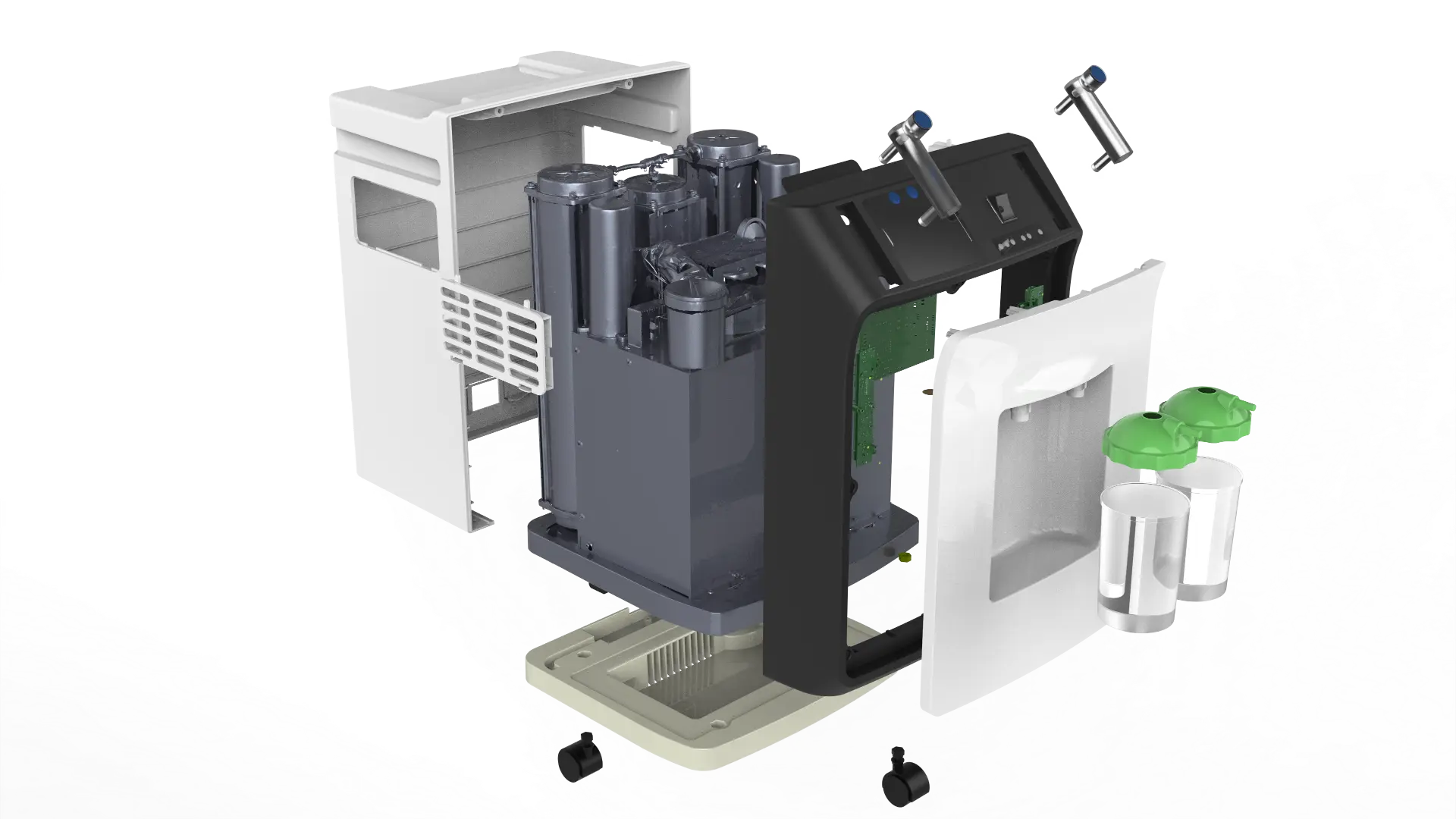

Exploded assembly viewExploded assembly view

Three to four design concepts. One final CAD model.

Hongyi JIG developed 3 to 4 design concepts for the concentrator housing and components. Each concept was evaluated against functional requirements, assembly feasibility, and home-environment aesthetics. The final CAD model was selected and locked before any tooling work began — a critical governance step that eliminated costly late-stage changes.

What governance added at the design stage
Without design governance — Multiple concept iterations continue into tooling phase, causing expensive rework and delays.
Rework after tooling starts
With Hongyi JIG — Design locked after structured concept review. Tooling begins on a frozen, validated CAD model.
Design frozen before steel cut

DFM and MoldFlow — before a single cut.

Part and mould designs were optimised through Design for Manufacturability review and MoldFlow simulation. These tools identified potential fill issues, weld lines, and sink marks before any steel was committed. The result: predictable, first-time-right tooling with no surprises at the trial stage. This is the difference between governed tooling and tooling by assumption.

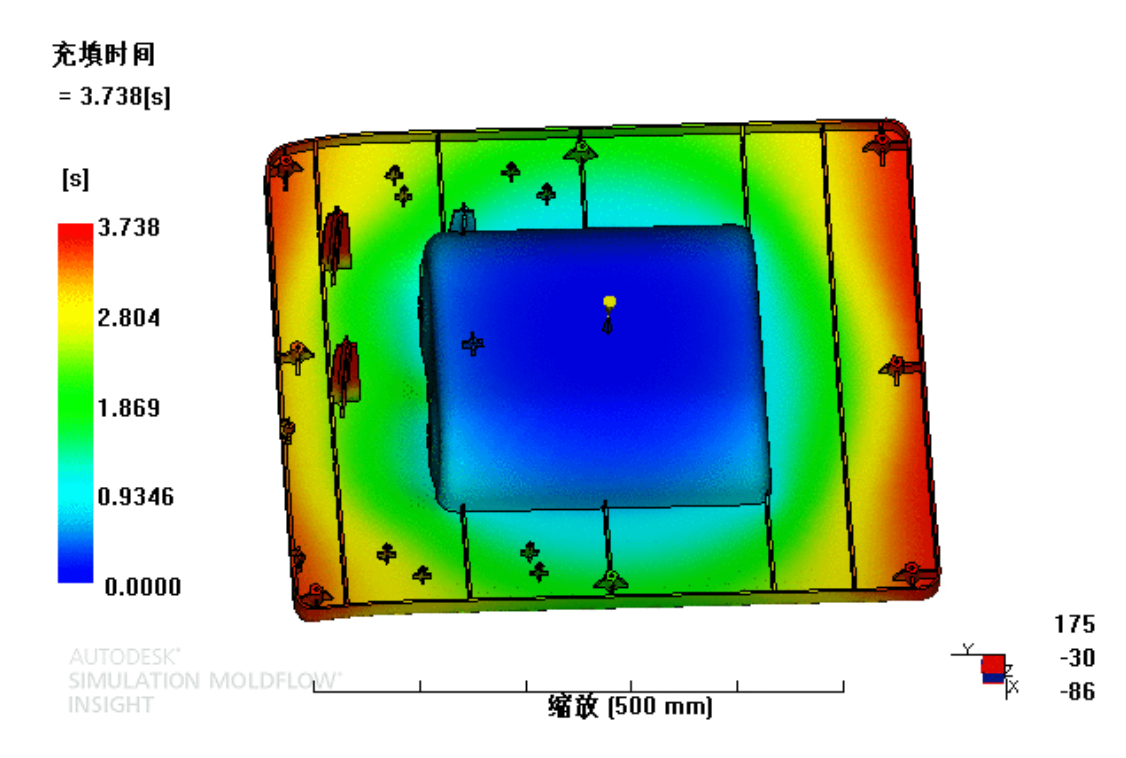

MoldFlow simulation — fill time analysisMoldFlow simulation — fill time analysis
A home oxygen concentrator cannot fail. Every governance decision — from CAD lock to mould steel — was made with that in mind.

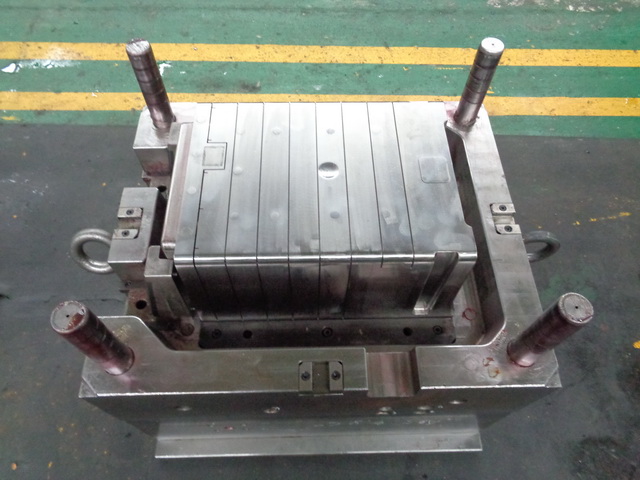

Actual injection mould — built in ChinaActual injection mould — built in China

6 moulds. Multi-cavity. 60 days. Assembly on the second trial.

Six injection moulds were developed with multi-cavity configurations for efficient production. Tool steel specification: Mould Base in Domestic 2311 AB Plates, Core and Cavity in 718H IMPAX HI HARD. Hot and cold runner systems were selected based on part geometry and cycle time requirements. The entire tooling programme was completed within 60 days — and assembly was achieved on the second trial.

See the trial in action.

Watch the Oxygen Concentrator mould trial — from the first shot to confirmed assembly. This is what governed tooling looks like at the production stage.

Does your medical device programme need tooling that cannot afford to fail?

Twenty minutes. No quotation.

Start a Structured Discussion

This case study is published with the knowledge and consent of Taurus Healthcare Pvt Ltd. Product and programme details are represented accurately. Production volumes and commercial terms have been omitted at the client's request.
